Sonore ultraRendu v1.3 – new design

Description

Sonore ultraRendu v1.3 – new design

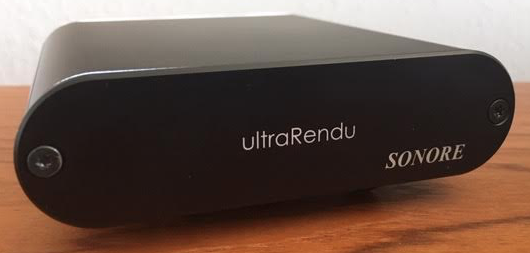

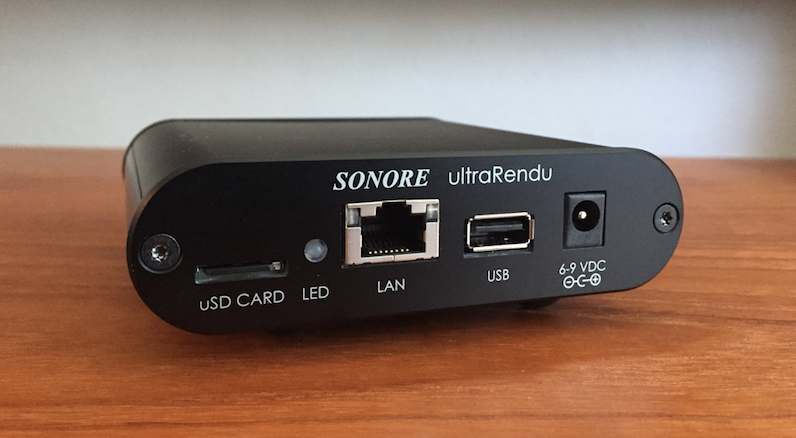

The Sonore ultraRendu project is an extension of the microRendu project that came before it. The design is inspired by audiophile gear and meant to bring grace and simplicity to a microcomputer. The original microRendu was very small and intended to be hidden out of sight behind your other gear. The ultraRendu can be powered by your favorite power supply. The ultraRendu remains as an Ethernet input and USB-Audio output, but all the connectors are located on the rear of the unit for easy cable routing. The ultraRendu utilizes a new proprietary printed circuit board with only the essential components and many updates to match its ultra designation. The best way to connect the ultraRendu to a USB device is via your favorite USB cable. The ultraRendu is easy to configure, accepts streams from various sources, and includes our latest version of our operating system Sonicorbiter.

So, what’s new?

1. We wound up redoing a lot of the power network. The new capacitors available now are much better than what was available when this board
was done originally so we redid every capacitor on the board. Just this alone of very exciting.
2. We replaced two of the TI regulators with three LT3045s.
3. The LVDS clock driver has been replaced with a very low phase noise driver.
4. Improved the USB A jack to the through hole one used in other Rendu boards. This was done to increase reliability.
5. Ships with Sonic Orbiter 2.9.

SELECTABLE OUTPUT MODES – Sonicorbiter 2.9

• • Mode #1 – SqueezeLite Output – This output works with any Logitech Media Server and compatible controllers. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.

• • Mode #2 – ShairPort Output – This is an AirPlay emulator that utilizes streams sent to it from a compatible source. This output supports true gapless playback of PCM.

• • Mode #3 – MPD/DLNA Output:
    Mode #3a – DLNA Output – This output utilizes streams from UPNP/DLNA servers and controllers. This output can be configured as an OpenHome renderer. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.
    Mode #3b – MPD Output – This output is intended to work with a SMB mount. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.
    Mode #3c – Songcast Output – This output accepts streams from your computer running Linn Songcast. The application is in Beta form.

• • Mode #4 – HQ Player NAA Output – This output utilizes streams from Signalyst’s HQ Player running on your computer. Digital signal processing is performed by HQ Player and then asynchronously streamed to the Network Audio Adapter (NAA) output. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.

• • Mode #5 – RoonReady Output – This output utilizes streams from Roon. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.
  • Mode #6 – Spotify Connect Output – This output can be controlled by your computer or tablet running the Spotify application. This application is based on librespot which is a an open source client library for Spotify. The application is in Beta form.

SOFTWARE FEATURES

• Supports the following PCM sample rates up to: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, and 768kHz
• Supports the following DSD sample rates up to: DSD64, DSD128, DSD256, DSD512
• POP free DSD/PCM transitions
• Not all USB devices or output modes support the maximum sample rate of the unit
• RoonReady certified
• Audirvana Plus certified
• Running Logitech Media Server locally allows playback of local radio stations and streaming service
• Logitech Media Server allows you to use the unit as a UPNP server in combination with Drive Mounter
• The Software Manager that allows you to install and uninstall apps as needed
• BubbleUPnP Server app allows any renderer to take advantage of the OhMedia – OpenHome protocol
• OhMedia – OpenHome protocol allows the Linn Kinsky and Linn Kazoo Apps with playlist support to be used as controllers
• Supports Tidal and Qobuz lossless streaming via third party applications
• Native DSD supported
• The unit is controlled via third-party apps on your mobile device and on your computer
• Based on Sonicorbiter, closed source and open source (GPLv2)



HARDWARE FEATURES

• Six (6) high-quality ultra low noise regulators
• Fixed frequency high-quality ultra low jitter FEMTO oscillator
• External power input jack
• RJ45 input connector
• USB-A audio output connector
• Micro SD port for the operating system
• Multicore processor with DDR3 RAM
• Voltage input: 6-9 VDC, where 7 VDC is recommended. 9 VDC not recommended.
• Current input: 2A peak current and 1A continuous current
• Operating Conditions: up to 73 F/22.8 C
• Power connector: 2.1mm x 5.5mm (center +)
• Dimension without rubber feet: 30 mm(H) x 110 mm(W) x 112 mm(D)



Manufacturer: SONORE computer audio – http://www.sonore.us/index.html
